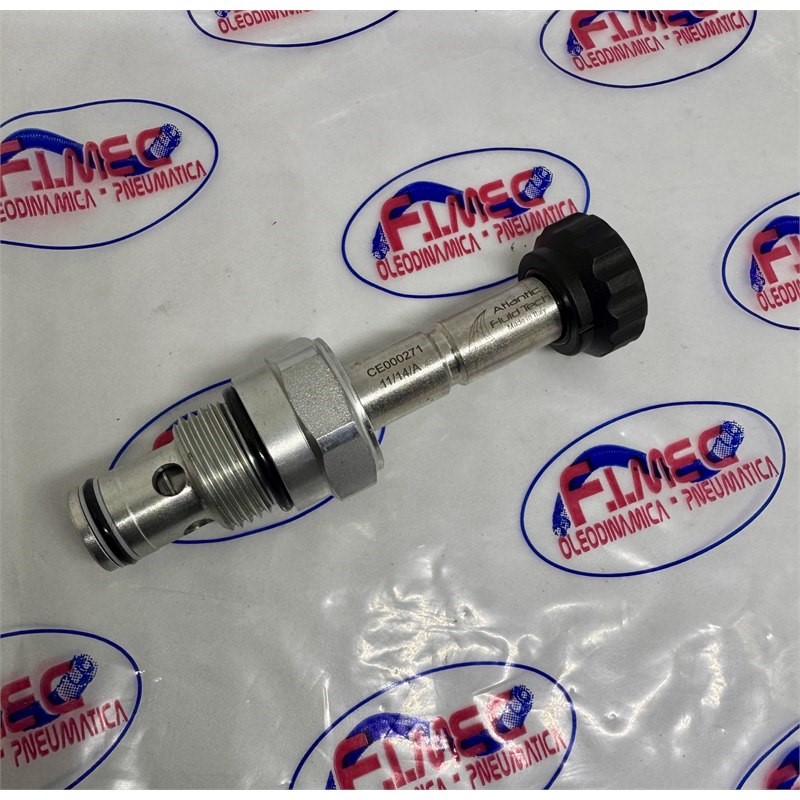

Elettrovalvola a cartuccia 2/2 N/A 7/8 - 14 UNF

40 l / minuto portata CE000271 0 30 25 20 15 10 5 bar 0 Description CEBN-080-NAFN-06-S10-N350 CE000272 CE000273 CE000571 CE000572 CEBN-080-NAFP-06-S10-N350 CEBN-080-NAFK-06-S10-N350 CEBN-080-NAFN-06-S10-N500 CEBN-080-NAFP-06-S10-N500 CEBN-080-NAFK-06-S10-N500 gpm l/min 4,2 16 8,4 32 Options Standard Push style override Knob style override Standard Push style override Knob style override 2 1 SPECIFICATIONS Max. operating pressure: Rated flow: Cavity: Weight: Min. voltage required: Coil type: Ambient temperature: 350/500 bar (5000/7200 psi) 80 l/min (21 gpm) SAE-10-2N 0,18 kg (0,40 lbs) 90% of nominal M7 or M3 type-20/+50 °C Contamination class to ISO 4406: (-4/+122 °F) See technical spec. Seal kit: Installation torque: MTTFd: RA900082 55 - 62 Nm (41 - 46 ft-lb) 150 - 1200 years: See technical spec. OPTIONS Standard Push style override Knob style override 12,6 48 16 64 21 80 400 350 300 200 150 75 psi 0 Max operating pressure 350 bar (5000 psi) 350 bar (5000 psi) 2>1 350 bar (5000 psi) 500 bar (7200 psi) 500 bar (7200 psi) 500 bar (7200 psi
