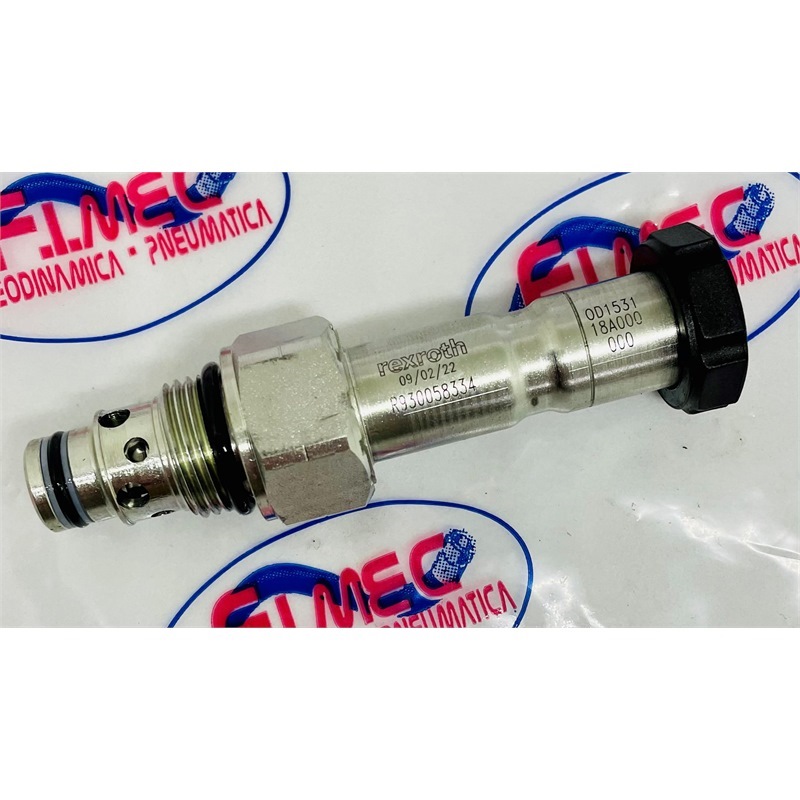

Valvola a cartuccia normalmente chiusa R930058334 Bosch Rexroth

Controllo direzione / EV 2/2 pilotato on-off / NC a otturatore bidirezionale a doppia chiusura senza perdite Solenoid operated valves pilot operated poppet type 2-way normally closed Common cavity, Size 08 RE 18323-25 Edition: 06.2019 VEI-16-08A-NC OD.15 - X - 18 - Y - Z Replaces: 04.2018 Technical data General Weight 0.15 kg (0.33 lbs) Installation orientation Unrestricted Storage ambient temperature range -40 to 100 °C (-40 to 212 °F) Operating ambient temperature range -30 to 90 °C (-22 to 194 °F) Hydraulic Max. operating pressure 350 bar (5000 psi) Flow range 0.5 - 40 l/min (0.1 - 11 gpm) Fatigue cycle life 2 million cycles at 350 bar 150000 cycles at 420 bar Max. internal leakage: 5 drops/min. for X= 01,05,07 20 drops/min. for X= 31,03,09 Switching time Opening ≤ 50 ms Closing ≤ 100 ms Fluid temperature range -20 to 80 °C (-4 to 176 °F) Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) Installation torque 39 - 51 Nm (29 - 38 ft-lbs) Recommended degree of fluid contamination Nominal value max. 10 µm (NAS 8) ISO 4406 19/17/14 MTTFd 150 years see RE 18350-51 Cavity CA-08A-2N see 18325-70 Seal kit for X=01,05,07 code material no. RG08A2010520100 R901101437 Seal kit for X=31,03,09 code material no. RG08A2010530100 R901101544 Seal kit coil and standard cap code material no. RG02Z0010000100 R930067869 Seal kit coil and protective cap only for Y=D code material no. RG03Z0010000100 R930067870 Other technical data See data sheet 18350-50 Electrical Type of voltage DC voltage Coil type D36 Supply voltage See data sheet 18325-90 Voltage tolerance against ambient temperature See characteristic curve Power consumption 20 W Type of protection See data sheet 18325-90 Note: Coils must be ordered separately Technical data New VEI-16 family incorporates a new solenoid concept providing excellent performance and enables cartridges to work in severe environment. Cartridges also incorporates advanced design of hydraulic parts providing excelle OD150118A000000 R930058697 OD150118D000000 R930059941 OD150518A000000 R930058427 OD150518D000000 R930058344 OD150518DP00000 R930059757 OD150718A000000 R930058338 OD150718D000000 R930058336 OD150718DP00000 R930058529 OD150118E000000 R930060958 OD150518E000000 R930060966 OD150718E000000 R930060973 OD153118A000000 R930058334 Type Material number OD153118D000000 R930058898 OD153118E000000 R930065030 OD150518A800000 R930063229 OD150318A000000 R930062828 OD150918A000000 R930064361 OD153118DP00000 R930066685 OD150518D800000 R930063959 OD150318D000000 R930065238 OD150918D000000 R930066189 OD150318A800000 R930065856 OD150518A800000 R930063229 OD153118A800000 R930066547
